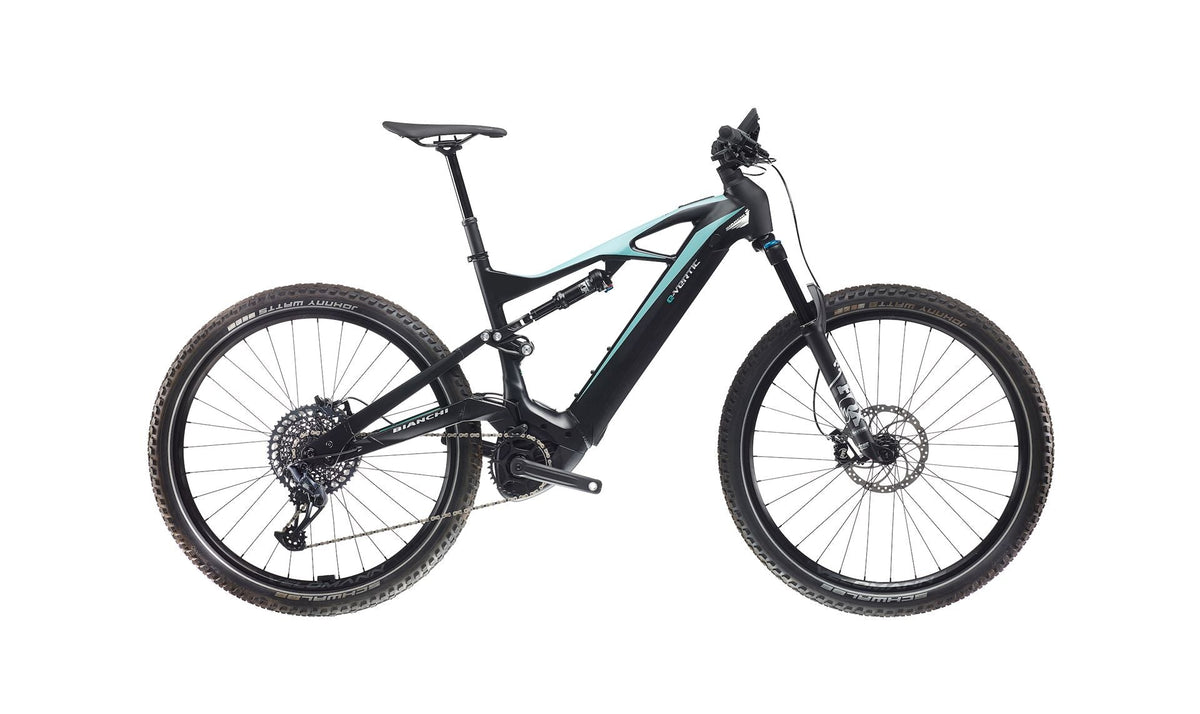

BIANCHI e-Vertic FX-Type

MOTOR UNIT

• MOTOR

  Bosch Performance Line CX, 250W, 85Nm, Kiox display

• BATTERY

  Bosch PowerTube 750Wh integrated battery

FRAMESET

• FRAME

  e-VERTIC FX-Type sizes: 43, 48, 53 - 12x148 mm thru axle dropouts - Post mount 180 disc brake type - 140mm travel front & rear - Internal cable routing in steerer

• FORK

  RockShox 35 Silver TK 29", 140mm travel, 1.5" tapered HT, Maxle Stealth 15x110mm BOOST axle, minimum 180mm rotor, maximum 220mm rotor, 44mm rake, 61mm crown, Solo Air

• REARSHOCK

  RockShox Deluxe Select, 210/55, DebonAir Progressive, Damper Type R, Compression tune L, Lockout Force n/a, black finish tube, external rebound adjustment, Volume reducer 0 Neg 2 Pos

• HEADSET

  Acros AZX-670 1.8" top / 1.5" - internal cable routing

DRIVETRAIN

• SHIFTERS

  Sram SX EAGLE 1x12

• REAR DERAILLEUR

  Sram SX Eagle, 12sp

• CRANKSET

  FSA E-Bike Diecast Crankset ISIS / 165mm / Die cast aluminum Sram X-SYNC 2 Eagle Chainring, 34T

• BOTTOM BRACKET

  included in the motor

• CHAIN

  Sram SX EAGLE, 12sp

BRAKES

• BRAKES

  Shimano, BL-M4100, BR-MT420, 4 pistons

• ROTOR

  Shimano, SM-RT30, L 203MM

WHEELS

• WHEELS

  Velomann Tubeless Ready 29", 622x30, 32 hole

• REARHUB

  Formula CL-3248 for Center Lock, 32h, 12x148mm TA

• FRONTHUB

  Formula CL-811 for Center Lock, 32h, 15x110mm TA

• TIRE

  Vittoria e-Barzo 29x2.6 XC-Trail TNT

COCKPIT

• STEM

  Velomann, 50mm, 35mm, 1"1/8

• HANDLEBAR

  Velomann, width 780mm, diam.35mm, rise 18mm, backsweep 8°

• GRIPS

  T-One Rock T-GP34 single lock grip, TPR, 130mm, plastic inner body, aluminium clamp

SADDLE

• SEATPOST

  Velomann, diam.31,6mm, internal remote cable routing, 120mm/150mm travel - 120mm for size 43 - 150mm for sizes 48, 53

• SADDLE

  Velomann Gnd Full-fit Start Up, carbon steel rail, 262x145
