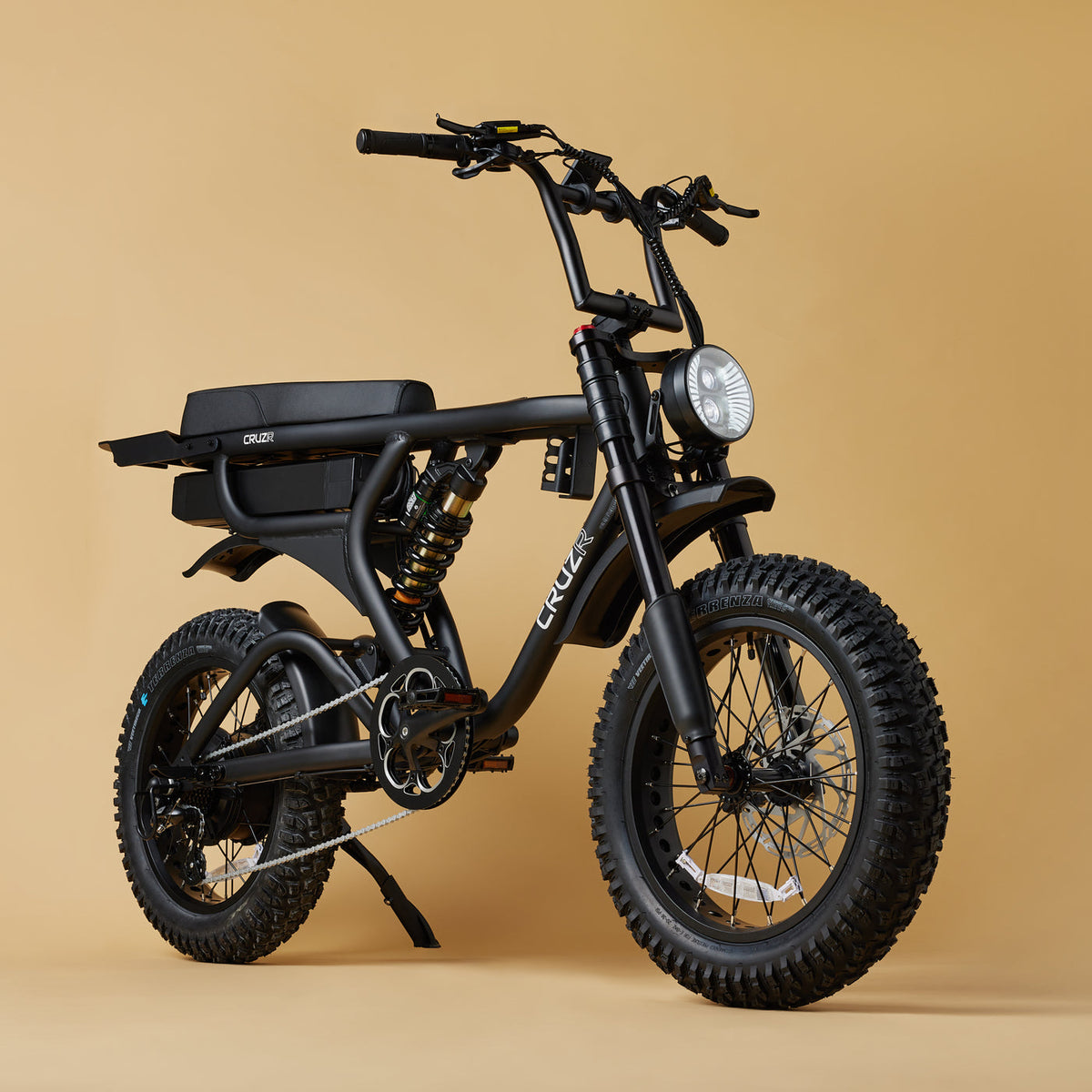

CRUZR STOKE AF (2000W) OFF-ROAD

OFF-ROAD ELECTRIC BIKE (PRIVATE PROPERTY USE)

EXTREME POWER FOR OFF-ROAD ADVENTURES

The STOKE AF is built for one thing: pushing limits.

This is the STOKE platform taken well beyond the norm — deeper into beast territory, where raw power, brutal torque, and uncompromising control take over.

More power.
More torque.
More control.

Designed exclusively for off-road riding and private property use, the STOKE AF is built to dominate terrain that standard electric bikes simply aren’t designed to handle.

If it looks intimidating — good. It should.

HIGH-POWER OFF-ROAD DRIVE SYSTEM

At the core of the STOKE AF is a high-output BAFANG rear hub motor, paired with BAFANG’s advanced CBX electrical control system, delivering clean, end-to-end power management under extreme load.

Drive system highlights:

• BAFANG rear hub motor

• Rated output: 2000W

• Peak output: up to 4120W

• Maximum torque: 140 Nm

• Top Speed of 85km/ph

• Full pedal assist and throttle operation

• BAFANG CBX electrical control system (end-to-end integration)

• Designed exclusively for off-road and private property environments

This model is not supplied as an EPAC and is not intended for use on public roads or shared paths.

BATTERY & RANGE

60V 25Ah high-capacity battery system
Samsung lithium battery cells, packed and integrated by BAFANG

Estimated range:
Up to 80 km per charge using pedal assist, depending on terrain, load, and riding style.

SUSPENSION, BRAKING & CONTROL

Built to absorb punishment and stay planted under extreme power:

• Premium DYMACE adjustable front fork suspension

• Heavy-duty DNM mid shock (1400 lb spring)

• 203 mm Tektro 4-piston hydraulic disc brakes

• 20 × 4.5” VEETire Terrenza Moto Power Wall off-road tyres

• Lightweight aluminium alloy frame

• Shimano 7-speed pedal assist drivetrain

• BAFANG DP C010.CN smart colour TFT display

PRACTICAL FEATURES

• Rear cargo rack (standard)

• Sports neoprene cushioned two-up saddle

• Rear passenger foot pegs

• Half-twist throttle

• In-frame cup holder

• Front and rear mudguards

• Anti-rust chain

• Accessories kit including charger and tool kit

WEIGHTS & DIMENSIONS

Payload capacity: 180 kg
Bike weight: 49 kg (including battery)
Seat height: 93 cm
Length: 190 cm (wheel to wheel)

INTENDED USE & IMPORTANT NOTICE

The STOKE AF 2000W is designed and supplied for:

• Private property use

• Off-road environments

• Farms, large acreage, trails, paddocks, and privately owned land

This model:

• Does not meet the definition of an electrically power-assisted bicycle (EPAC)

• Is not supplied for use on public roads, bicycle paths, or shared pathways

• Is not a road-registered vehicle

Riders are responsible for ensuring their use complies with applicable local laws.

RIDER SAFETY

The STOKE AF is an extremely powerful off-road electric bike intended for experienced, confident riders only.

With high torque, high speed capability, and throttle control, extra care must be taken at all times.

Always:

• Wear appropriate protective gear

• Ride within your ability and experience level

• Respect terrain, traction, and stopping distances

• Supervise younger riders where appropriate

IMPORTANT:
