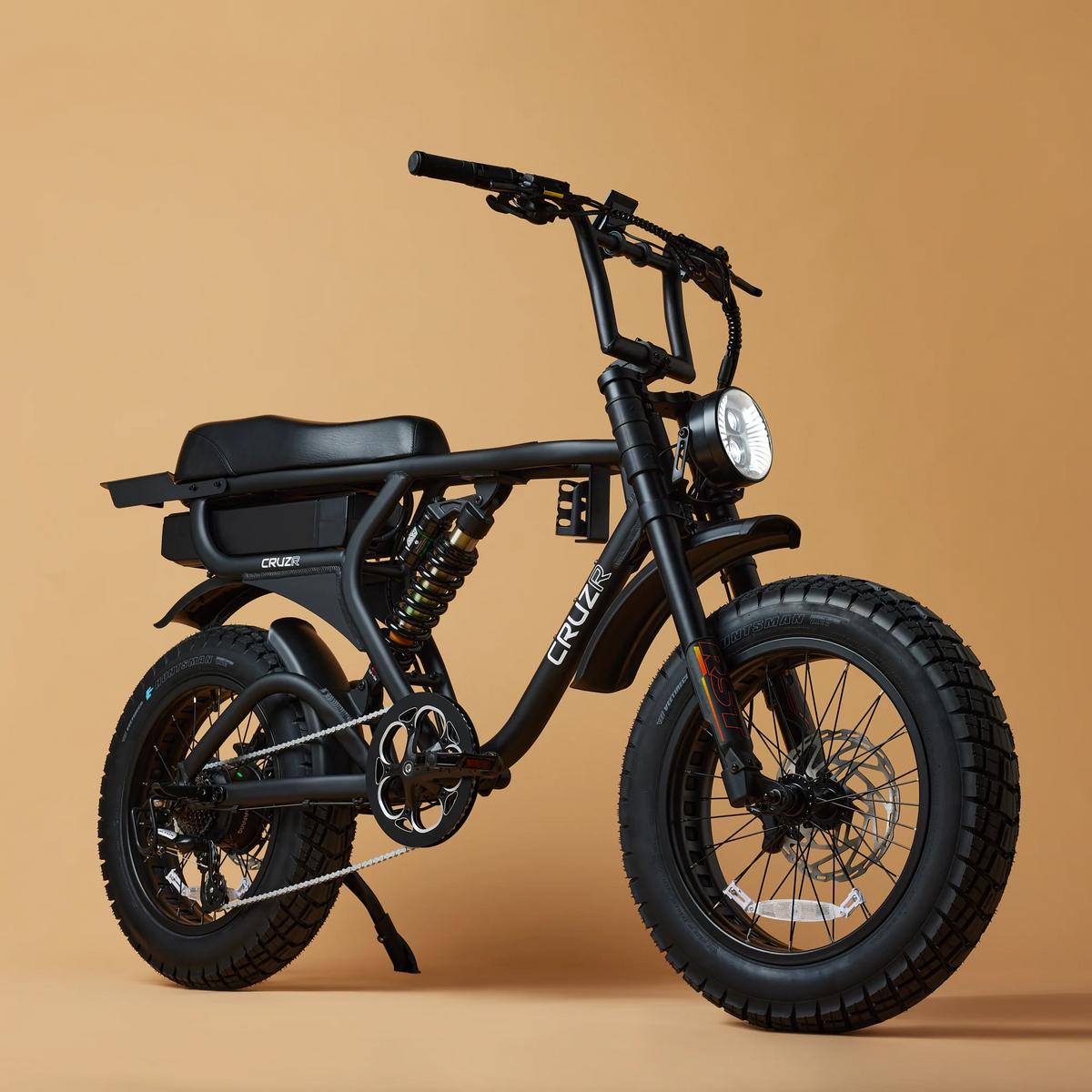

CRUZR STOKE OFF-ROAD

HIGH-POWER OFF-ROAD DRIVE SYSTEM

At the heart of the STOKE 1000W is a high-output BAFANG rear hub motor, delivering strong torque and responsive acceleration for off-road riding.

Drive system highlights:

• UL 2849 certified electrical system – certification covering the complete e-bike electrical system, including motor, battery, controller, and wiring

• BAFANG rear hub motor

• Rated output: 1000W Can be locked to 500W and 250W

• Top Speed of 55km/ph

• Peak output: up to 1560W

• Pedal assist and throttle operation

• Designed exclusively for off-road and private property environments

This model is not supplied as an EPAC and is not intended for use on public roads or shared paths.

BATTERY & RANGE

52V 20Ah Samsung lithium battery

UL 2271 certified battery – certification specific to the safety of lithium battery packs

Estimated range:
Up to 100 km using pedal assist, depending on terrain, load, and riding style.

SUSPENSION, BRAKING & CONTROL

Built to handle uneven surfaces and changing terrain:

• Premium DNM rear suspension (1200 series)

• RST front fork suspension

• 203 mm Tektro 4-piston hydraulic disc brakes

• 20" Huntsman all-terrain tyres

• Lightweight aluminium alloy frame

• Shimano 7-speed drivetrain

• Bright, full-colour TFT LCD display

PRACTICAL FEATURES

• Rear cargo rack (standard)

• Cushioned two-person saddle

• Rear passenger foot pegs

• Half-twist throttle

• Anti-rust chain

• In-frame cup holder

• Front and rear mudguards

• Accessories kit including charger and tool kit

WEIGHTS & DIMENSIONS

Payload capacity: 180 kg
Bike weight: 42 kg (including battery)
Seat height: 92 cm
Length: 170 cm (wheel to wheel)

INTENDED USE & IMPORTANT NOTICE

The STOKE 1000W is designed and supplied for:

• Private property use

• Off-road environments

• Farms, trails, paddocks, and privately owned land

This model:

• Does not meet the definition of an electrically power-assisted bicycle (EPAC)

• Is not supplied for use on public roads, bicycle paths, or shared pathways

• Is not a road-registered vehicle

Riders are responsible for ensuring their use complies with applicable local laws.

RIDER SAFETY

This is a high-powered off-road electric bike intended for confident, capable riders.

Always:

• Wear appropriate protective gear

• Ride within your ability

• Respect the terrain and conditions

• Supervise younger riders where appropriate

IMPORTANT:
