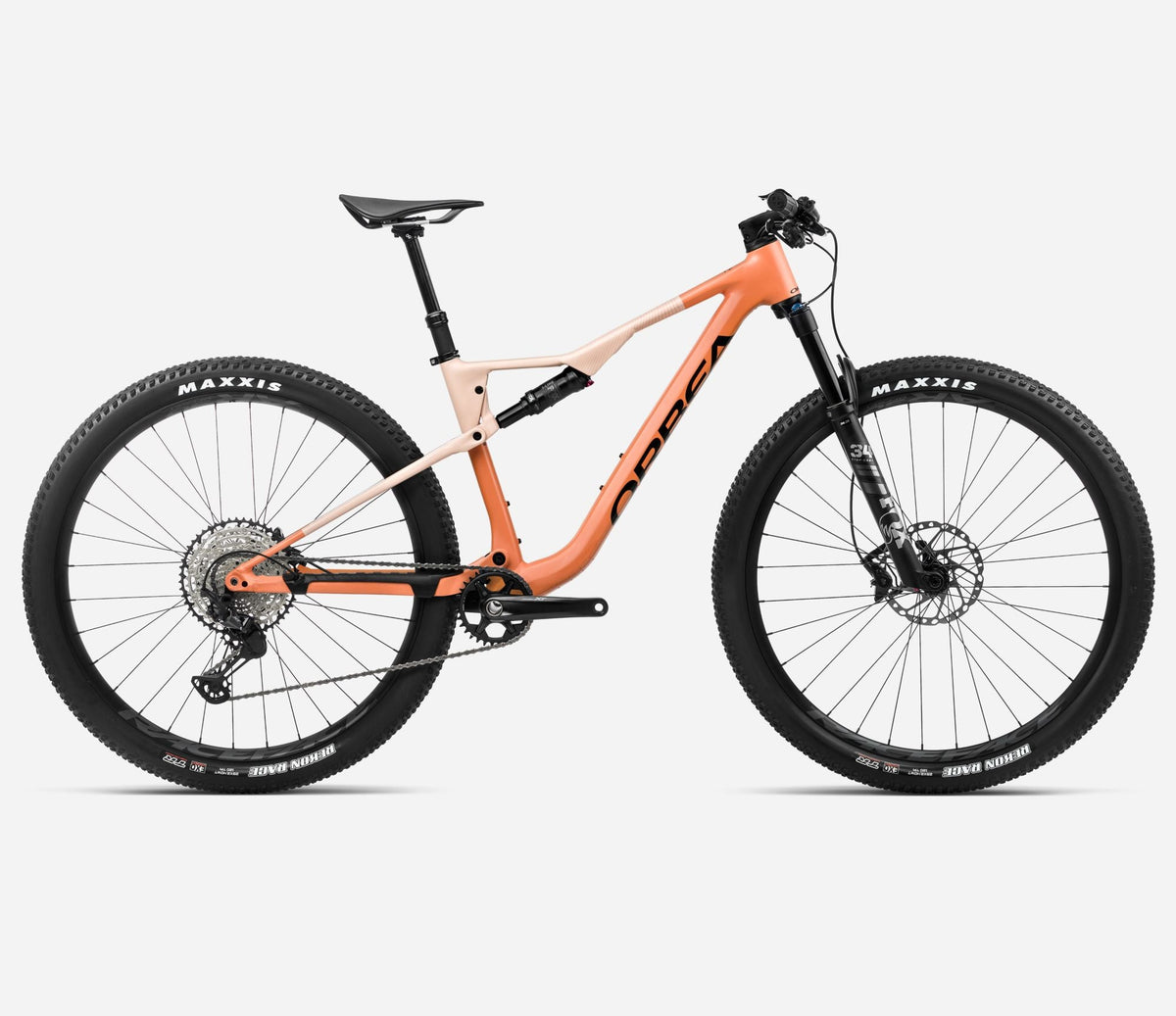

Orbea Oiz H10

The Orbea Oiz H10 is a full-suspension cross-country mountain bike. See the listed build specifications below and contact E-Machines for help confirming the model, size and configuration.

SPECIFICATIONS

FRAME
Orbea Oiz Hydro High Polished aluminum, Boost spacing, BSA bottom bracket, internal cable routing, UFO2 suspension design, I-Line shock mount

FRONT SUSPENSION
Fox 34 Float SC Performance 120 Grip Remote Push to Lock, 120mm travel, QR15x110

REAR SUSPENSION
 Fox Float SL Performance 120mm, Remote Push-lock Evol custom tune, 190x45mm

CRANKSET
Shimano XT M8100, 32T

SHIFTERS
Shimano XT M8100 I-Spec EV

REAR DERAILLEUR
Shimano XT M8100 SGS Shadow Plus

CASSETTE
Shimano CS-M7100, 10-51T, 12-speed

CHAIN
Shimano M6100

BRAKES
Shimano M6100 Hydraulic Disc

WHEELS
Race Face AR 30c Tubeless Ready

TIRES
 Maxxis Rekon Race 2.40" WT 120 TPI Exo TLR

HANDLEBAR
OC Mountain Performance MP30, 760mm width

STEM
OC Mountain Performance MP21, -6°

SEATPOST
OC Mountain Control MC21 dropper, 31.6mm diameter

SADDLE
Selle Italia Model X FecAlloy Rail, 145x248mm

GRIPS
OC Lock On
