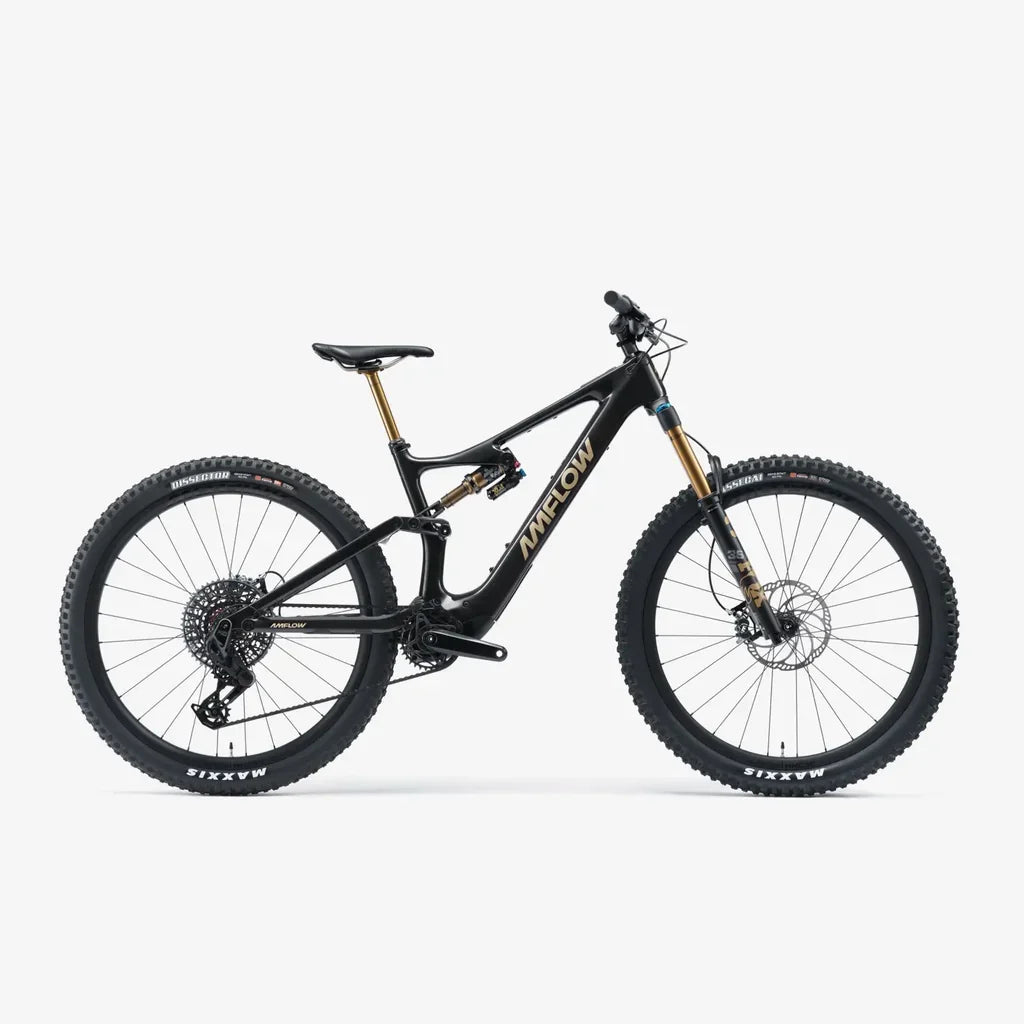

Amflow PL Carbon Pro E-MTB (600WH)

The Amflow PL Carbon Pro 600Wh is a high-performance electric mountain bike that combines cutting-edge technology with a lightweight design. Featuring an ultra-light carbon fiber frame with 150mm of rear travel, it offers agility and responsiveness on diverse terrains. The bike is equipped with the DJI Avinox M1 Drive Unit, delivering 105 Nm of torque and 850 watts of peak power, ensuring robust performance on challenging trails. Its integrated 600Wh battery provides a substantial range, making it suitable for extended rides. The Amflow PL Carbon Pro 600Wh is currently available at Freedom Machine in Byron Bay, offering an excellent opportunity for riders to experience this advanced e-MTB.

SPECIFICATIONS

FRAME
Full carbon fiber

REAR TRAVEL
150 mm

WHEEL COMPATABILITY
Designed for 29" wheels, with flip chips allowing accommodation of 27.5" rear wheels

FRONT FORK
FOX 36 Factory Series, 160 mm travel, GRIP X2 Damper, 15×110 mm axle, 44 mm rake

REAR SHOCK
FOX FLOAT X Factory, 185×55 mm, custom tune, EVOL air sleeve, 2-position lever with LSC adjustment

MOTOR
DJI Avinox M1 Drive Unit

PEAK POWER
850 W

BATTERY
600WH

CHARGING
Charges from 0% to 75% in approximately 1.5 hours with GaN 3x Fast Charging system

REAR DERAILLEUR
SRAM X0 Eagle Transmission Derailleur with power cable

CRANKSET
DJI Avinox SL Crank (M/L: 155 mm; XL/XXL: 160 mm)

CHAINRING
SRAM Eagle Transmission E-MTB Chainring 104BCD 34T

SHIFT LEVERS
SRAM AXS Pod Controller

CASSETTE
SRAM XS-1295 Eagle Transmission 10-52T

CHAIN
SRAM X0 Eagle Transmission Flattop Chain

BRAKES
Magura MT7 Pro hydraulic disc brakes

FRONT ROTOR
203 mm Storm HC Rotor

REAR ROTOR
203 mm Storm HC Rotor

WHEELS
Amflow HMC-30, carbon rims, 30 mm inner width, 28H, tubeless compatible

FRONT TIRE
Maxxis Assegai MaxxTerra 29 × 2.5" WT 3C EXO E-25 TLR

REAR TIRE
Maxxis Dissector MaxxTerra 29 × 2.4" WT 3C EXO+ E-25 TLR

CONTROL DISPLAY
2-inch OLED touchscreen integrated into the top tube

FEATURES
Displays real-time ride data, estimated range, and allows mode selection

MODES
Eco, Trail, Turbo, Auto (adaptive assistance), and Boost (provides up to 120 Nm torque and 1,000 W power for 30 seconds)

WALK ASSIST
Intelligent assistance for walking the bike uphill

AUTO HOLD
Prevents rollback on slopes

HILL START ASSIST
Provides additional torque for starting on inclines

CONNECTIVITY
Smartphone app integration for ride data analysis and system customization

IMPORTANT:

Before using this vehicle, check the appropriate local laws relating to your intended use of the vehicle on roads and road related areas.

Collect at 156 Jonson Street, Byron Bay, or arrange delivery across Australia. Final shipping options and costs are shown at Shopify checkout.
