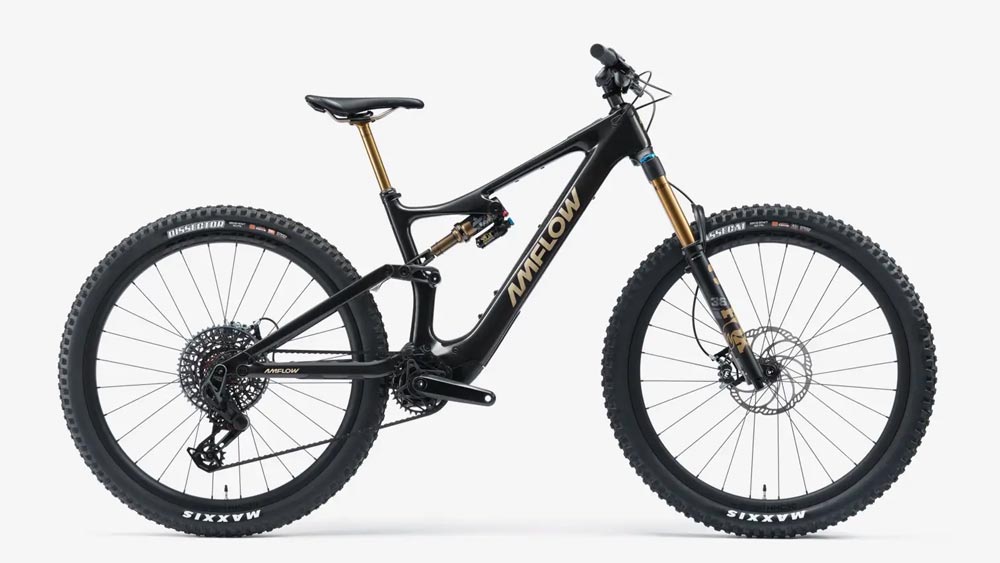

Amflow PL Carbon Pro E-MTB (800WH)

The Amflow PL Carbon Pro 800Wh is a cutting-edge electric mountain bike built for power, range, and agility. Powered by the DJI Avinox M1 Drive Unit, it delivers 105 Nm of torque and up to 850W of peak power—with a Boost mode offering 120 Nm for short bursts. The integrated 800Wh battery gives riders extended range and rapid charging (75% in just 96 minutes), all within a lightweight carbon frame. With FOX Factory suspension, advanced geometry, and a sleek 2-inch OLED display, this e-MTB is as capable as it is smart. Now available at Freedom Machine in Byron Bay, it’s your chance to ride one of the most advanced e-MTBs on the market.

SPECIFICATIONS

FRAME MATERIAL
Full carbon fiber

WHEEL COMPATABILITY
Compatible with both 27.5" and 29" rear wheels

FRONT FORK
FOX 36 Factory Series with 160 mm travel, featuring GRIP X2 Damper, 15×110 mm axle, and 44 mm rake

REAR SHOCK
FOX FLOAT X Factory, Trunnion mount (185×55 mm), custom tune, EVOL air sleeve, 2-position lever with Low-Speed Compression (LSC) adjustment

MOTOR
DJI Avinox M1 Drive Unit

TORQUE
105 Nm (with a Boost mode providing up to 120 Nm for short bursts)

PEAK POWER
850 W

BATTERY
800 Wh integrated battery

CHARGING
Avinox Fast Charger (12A/508W), capable of charging from 0% to 75% in approximately 1.5 hours

REAR DERAILLEUR
SRAM X0 Eagle Transmission Derailleur with power cable

CRANKSET
DJI Avinox SL Crank (M/L: 155 mm; XL/XXL: 160 mm)

CHAINRING
SRAM Eagle Transmission E-MTB Chainring 104BCD 34T

SHIFT LEVERS
SRAM AXS Pod Controller

CASSETTE
SRAM XS-1295 Eagle Transmission 10-52T

CHAIN
SRAM X0 Eagle Transmission Flattop Chain

BRAKES
Magura MT7 Pro hydraulic disc brakes

ROTORS
203 mm Magura Storm HC Rotors (front and rear)

WHEELS
Amflow HMC-30, carbon rims, 29", 30 mm inner width, 28H, tubeless compatible

FRONT TIRE
Maxxis Assegai MaxxTerra 29 × 2.5" WT 3C EXO E-25 TLR

REAR TIRE
Maxxis Dissector MaxxTerra 29 × 2.4" WT 3C EXO+ E-25 TLR

HANDLEBAR
Amflow Enduro Carbon Handlebar, 35 mm diameter, 800 mm width, 25 mm rise, 9° backsweep, 5° upsweep

GRIPS
Amflow Enduro Lock-on Grips

STEM
Amflow Enduro Alloy Stem

SEATPOST
FOX Transfer Factory Dropper Post (size-specific travel: M: 150 mm; L: 175 mm; XL/XXL: 200 mm)

DISPLAY
2-inch OLED touchscreen integrated into the top tube

CONTROLLERS
Avinox Wireless Controllers on both right and left sides

MODES
Eco, Trail, Turbo, Auto (adaptive assistance), and Boost (provides up to 120 Nm torque and 1,000 W power for 30 seconds)

WALK ASSIST
Intelligent assistance for walking the bike uphill

AUTO HOLD
Prevents rollback on slopes

HILL START ASSIST
Provides additional torque for starting on inclines

CONNECTIVITY
Smartphone app integration for ride data analysis and system customization

IMPORTANT:

Before using this vehicle, check the appropriate local laws relating to your intended use of the vehicle on roads and road related areas.
