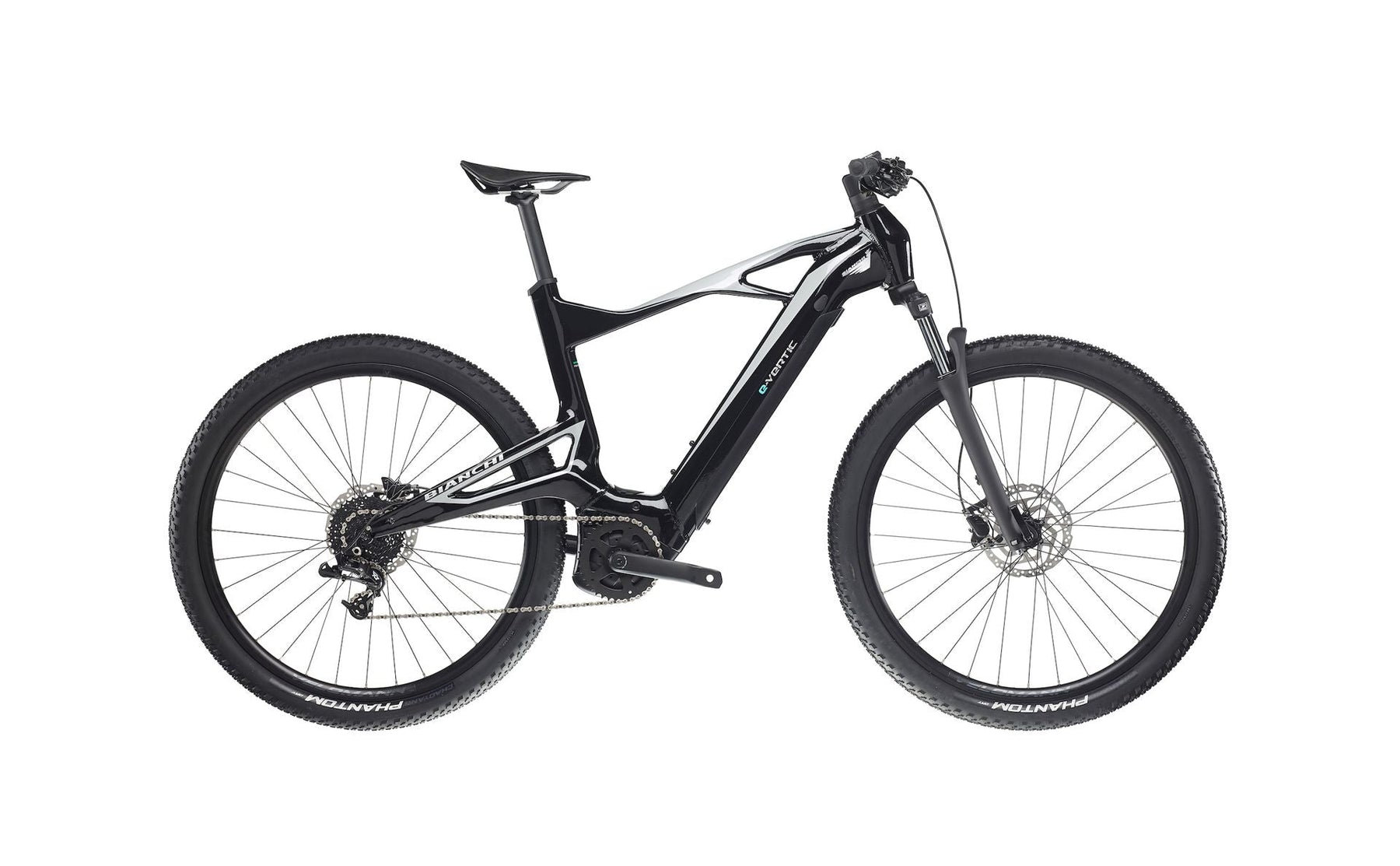

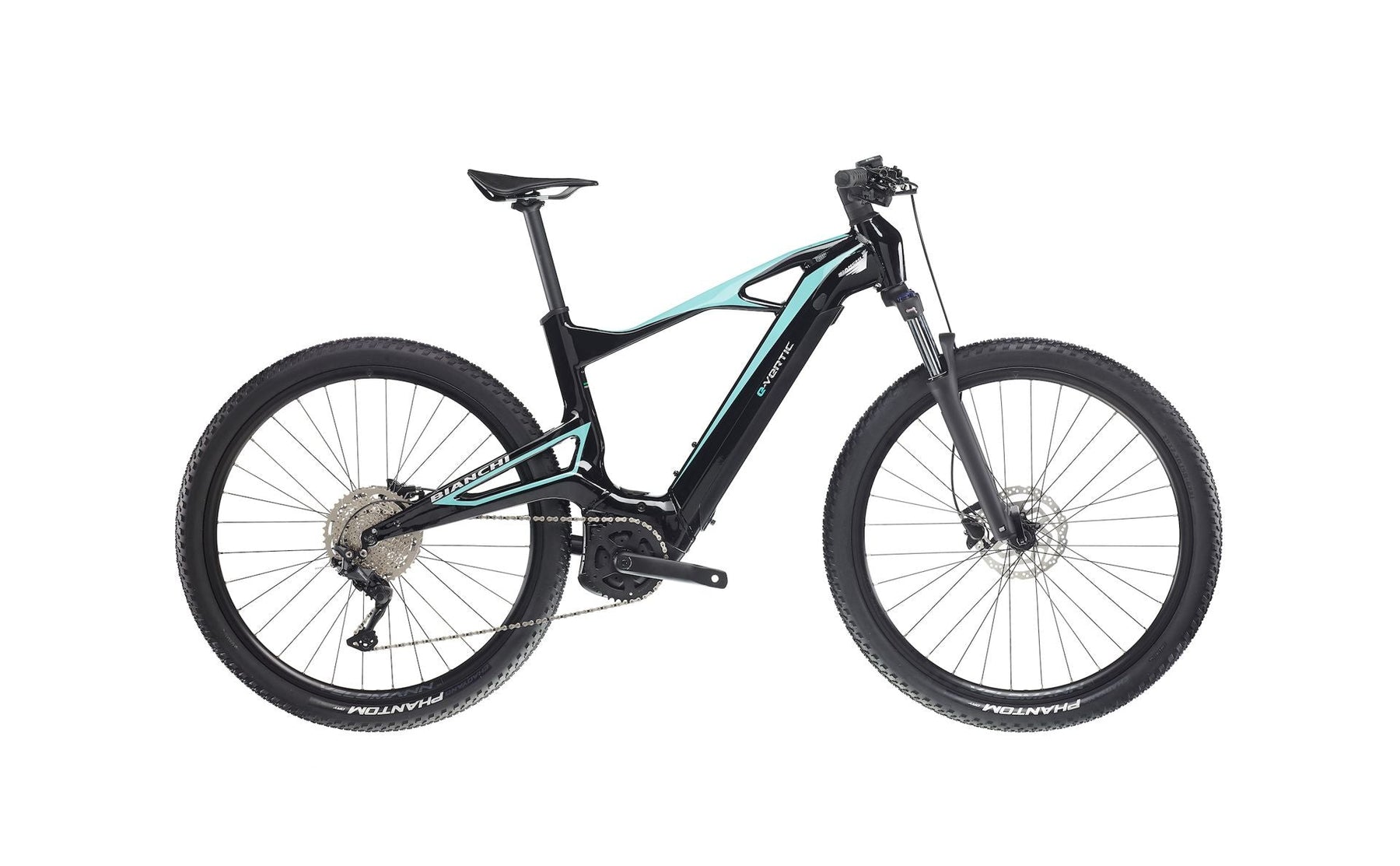

BIANCHI e-Vertic X-Type

MOTOR UNIT

• MOTOR

  Bosch Performance Line motor unit

• BATTERY

  Bosch Powertube 625Wh integrated battery, w/Display Purion

FRAMESET

• FRAME

  e-VERTIC X-Type ALU sizes: 43, 48, 53 - 9x135 mm quick release dropouts - Post mount 160 disc brake type

• FORK

  Suntour NVX30 DS 29", 100mm, AC4C, 30 mm stanchions, STKM, Cr-plating, Pitch 130 mm, Steerer 1-1/8"(TS), STKM, O.L.D. 9-100, Post 160 Direct

• HEADSET

  Headset 1,5"" top / 1,5"" bottom - bearings - integrated cable routing Starnut, Alloy Topcap 1 1/8“ crown race for ZS56, w/o seal

DRIVETRAIN

• SHIFTERS

  Sram X5 TRIGGER REAR 9sp

• REAR DERAILLEUR

  Sram RD X7 9sp

• CRANKSET

  FSA Direct Mount Steel Chainring - 38T / w/HT Steel /  ED / C.L. 50mm CK-200 FSA E-Bike Diecast Crankset - Gen3 / 170mm / Die cast aluminum Bosch Gen3 Bolt - Bosch Gen3 crank bolt

• BOTTOM BRACKET

  included in the motor

• CHAIN

  Kmc e9S NPBK 1/2" x 11/128"

BRAKES

• BRAKES

  Shimano DISC BRAKE ASSEMBLED SET, BR-MT200, SM-MA-F180P/P2, RESIN PAD, 1000MM HOSE/1700MM HOSE

• ROTOR

  Shimano, SM-RT10, 180mm, W/LOCK RING FOR RESIN PAD ONLY

WHEELS

• REARHUB

  Formula CL-1422 - CENTER LOCK, J-BEND, W/QR, FOR SHIMANO MTB 8/ 9/ 10/ 11-SPEED - O.L.D. 135 mm - AXLE 145 mm

• FRONTHUB

  Formula CL-1420 - CENTER LOCK, J-BEND, W/QR - 32H - O.L.D. 100 mm - AXLE 108 mm

• TIRE

  Chaoyang Phantom dry 29x2.3, 60tpi, 2C-MTB

COCKPIT

• STEM

  Velomann Viper0, 60 mm, 31,8 mm, 1"1/8

• HANDLEBAR

  Velomann, width 740mm, diam.31,8mm, 9° backsweep, 15mm rise,DB Alloy

• GRIPS

  T-One Rock T-GP34 single lock grip , TPR, plastic inner body, aluminium clamp

SADDLE

• SEATPOST

  Velomann , lenght 350mm for 15,17'' size and 400mm for 19,21'', diam.31,6mm, 0mm seatback

• SADDLE

  Selle Italia Model X Superflow
