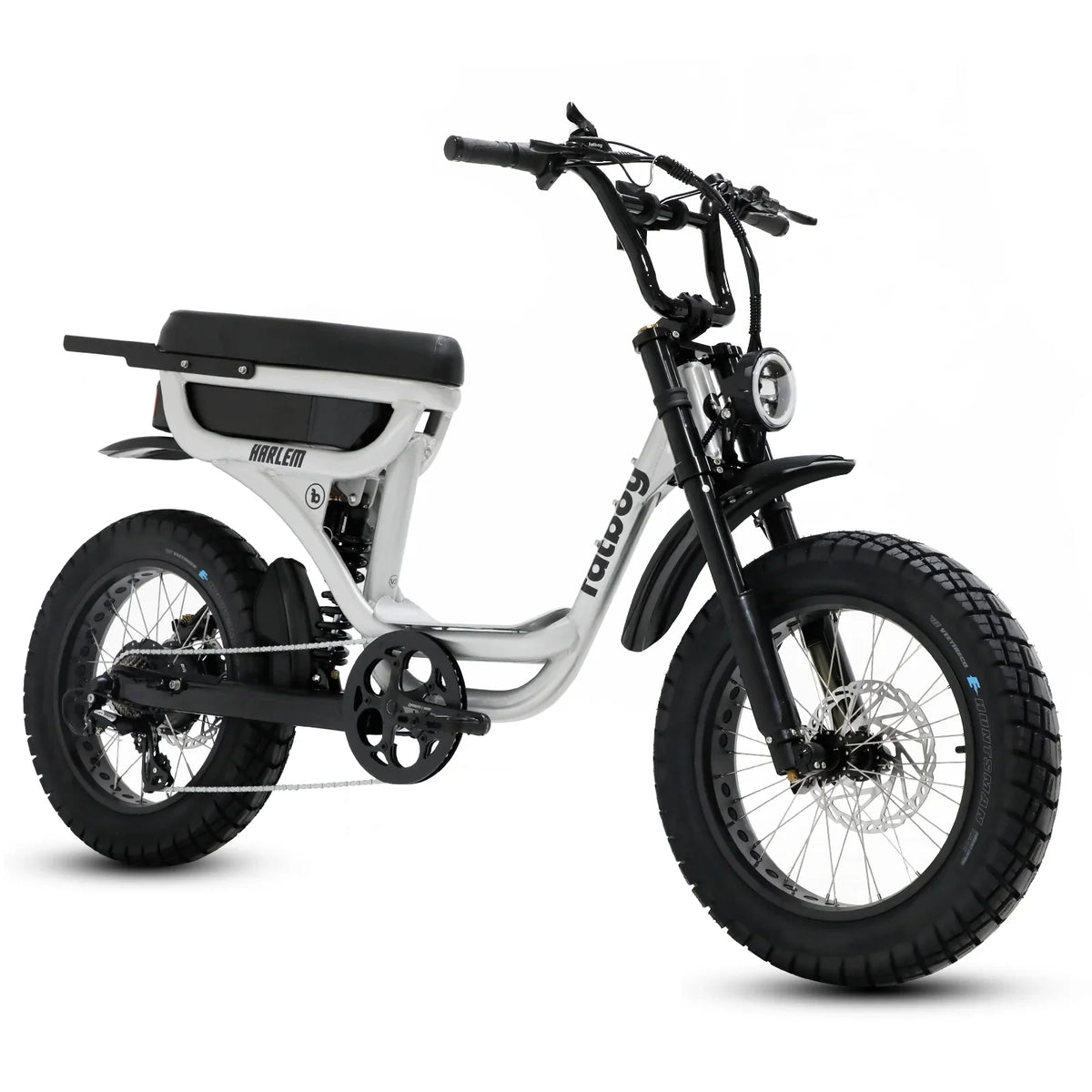

Fatboy HARLEM V3 - EN15194 Certified eBike

The Harlem is built to make riding easy, welcoming and fun. Smooth, approachable and always reliable, it turns daily trips into stress-free moments. The latest version is more efficient, more comfortable and more capable. From school runs to coffee catch ups, it keeps things simple while fitting right into family life. The step through frame makes it an ideal choice for smaller riders or anyone who wants maximum comfort with minimum effort. Our team love the Harlem V3.

EN15194-certified bikes are capped at 25 km/h and cannot be unlocked. The throttle works up to 6 km/h on its own, and up to 25 km/h when pedalling.

SPECIFICATIONS

MOTOR
48V 250W

BATTERY
48V 20Ah Samsung , UL2271 compliant

CHARGE TIME
4–6 hr

MAXIMUM ASSISTED SPEED
25 km/h. This EN15194 configuration cannot be unlocked.

ESTIMATED RANGE
80-100KM (Ideal conditions flat road PAS)

TORQUE
90 Nm

ASSIST & THROTTLE
Cadence PAS + twist throttle with isolator

GEARS
SHIMANO 7 Speed

DRIVE MODE
Cadence Sensing Pedal Assist 1:9 + Twist Throttle w. Isolator included in box.

DISPLAY
LCD color, USB charging, passcode, trip/ODO/range

BRAKES
Custom 4 Piston with Cooling Fins

SUSPENSION
Front (30 mm extra travel) + adjustable rear shock

FRAME
Step-Through

TYRES
20 × 4.0 Vee rubber puncture resistant tyres

WEIGHT CAPACITY
170 kg

BIKE WEIGHT
45KG including battery

IMPORTANT:

Before using this vehicle, check the appropriate local laws relating to your intended use of the vehicle on roads and road related areas.
