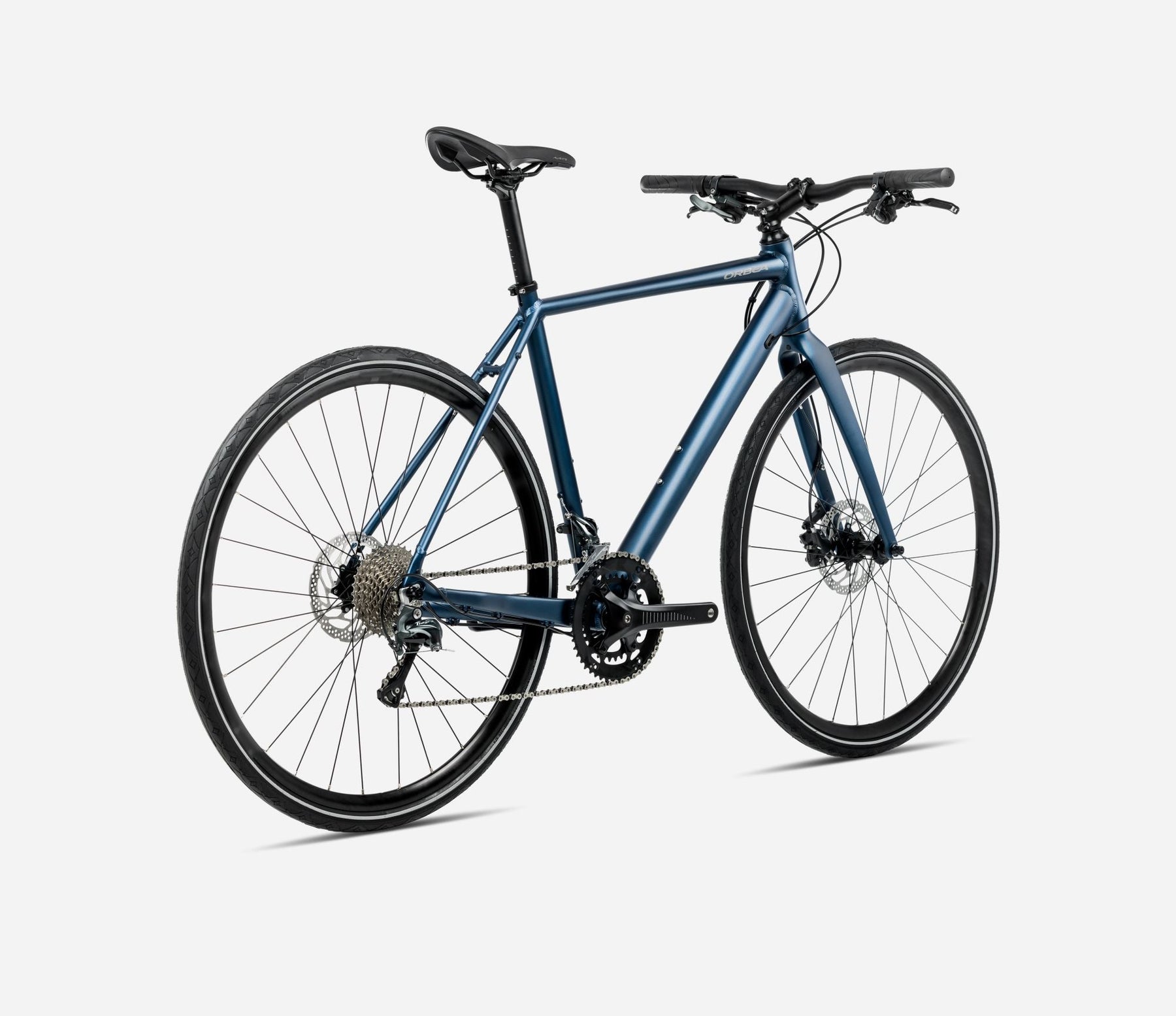

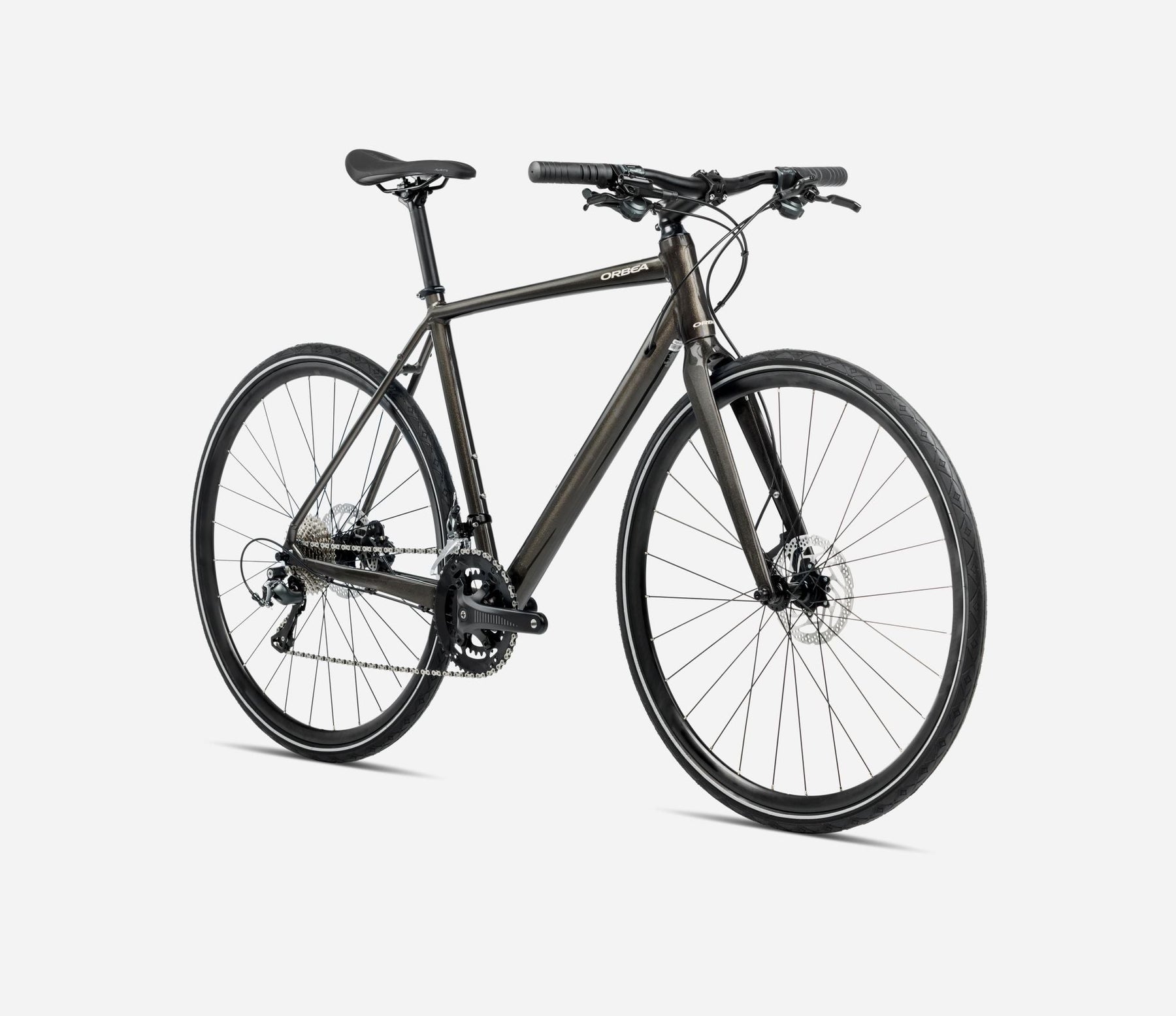

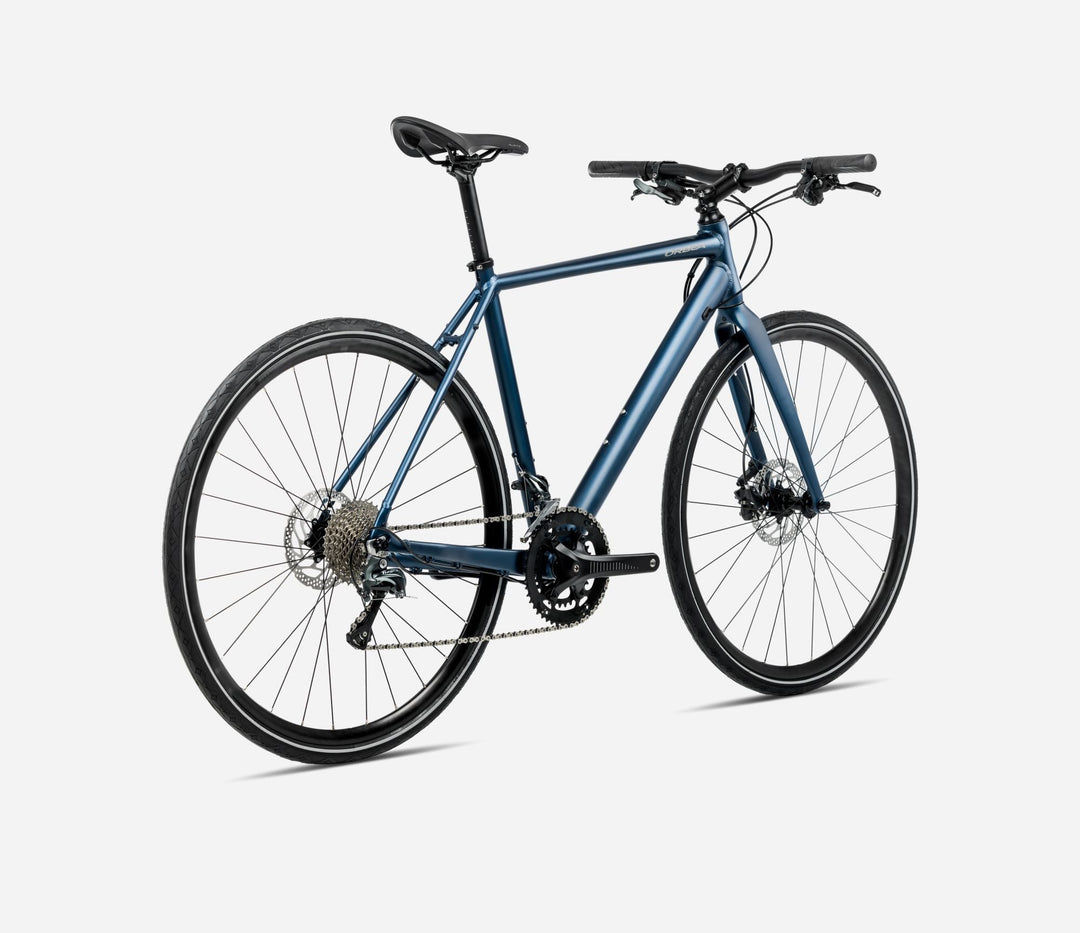

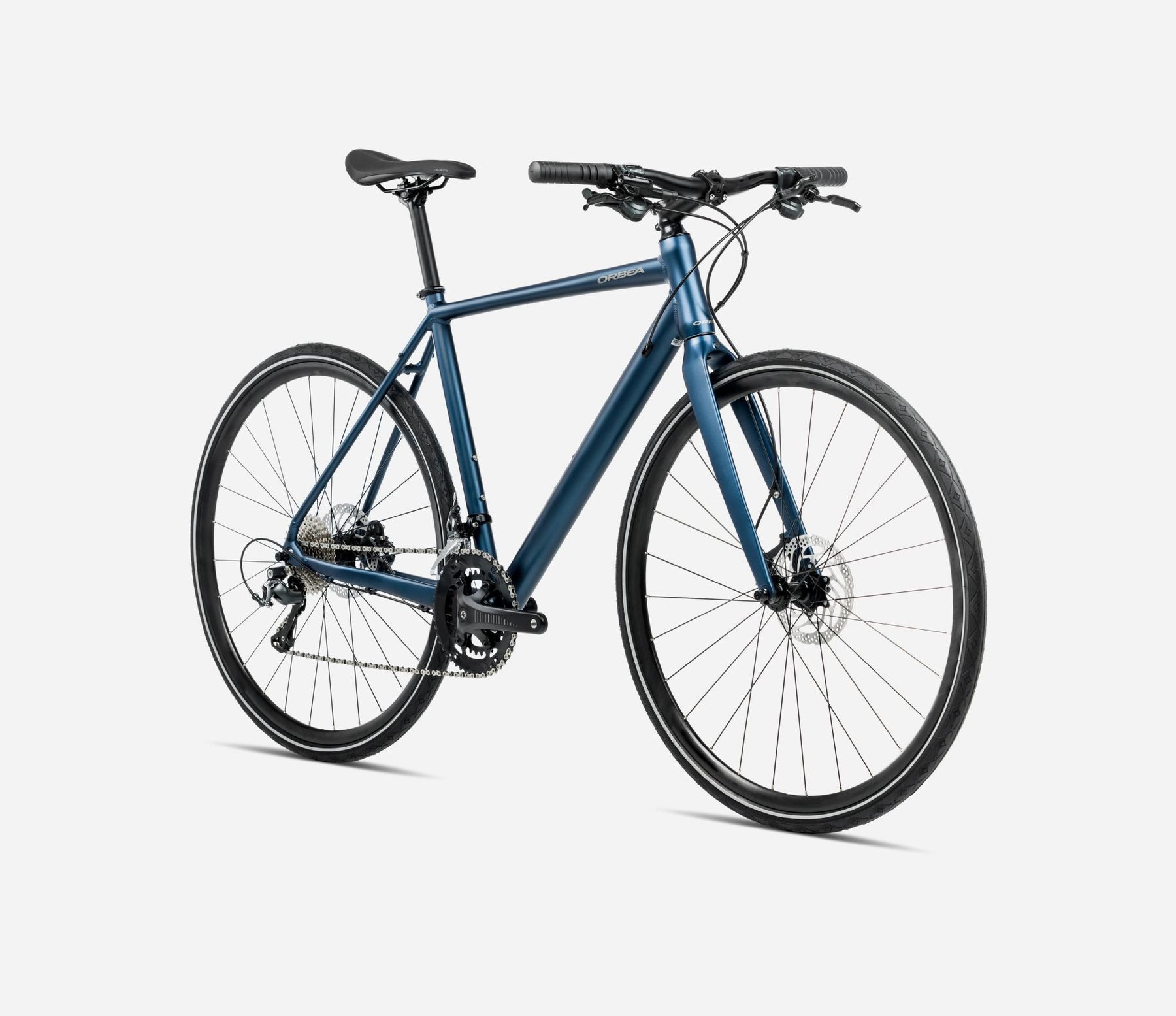

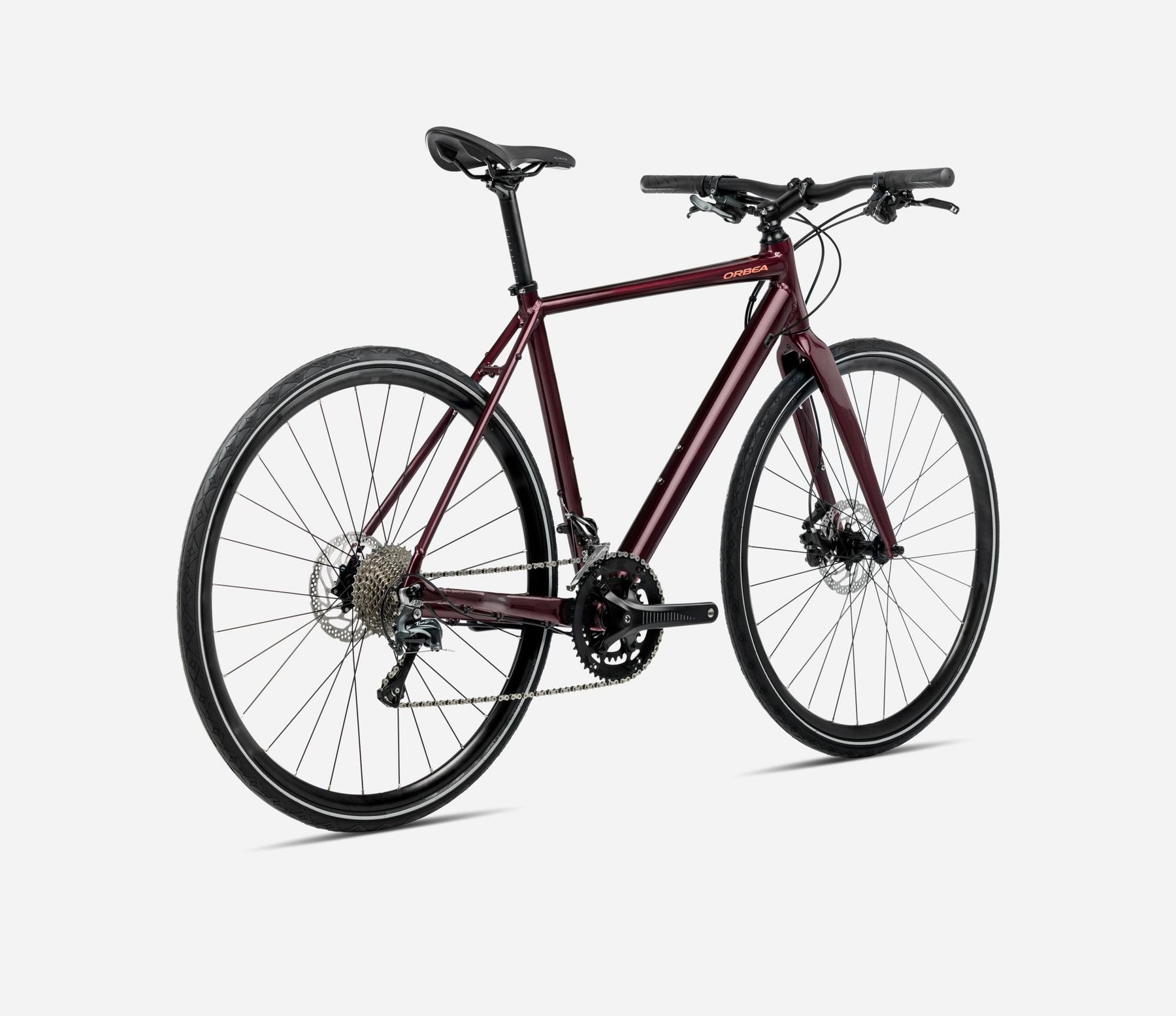

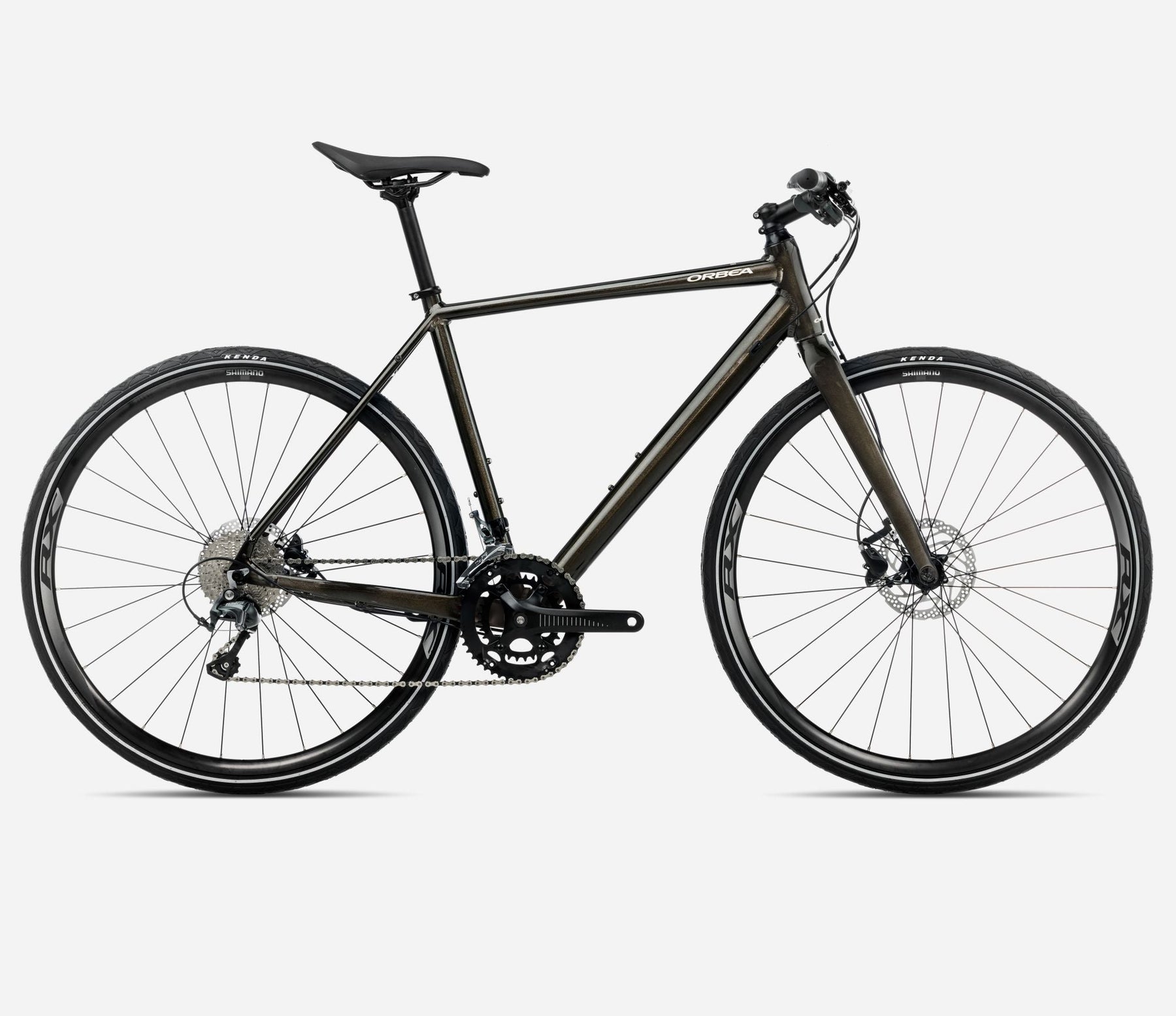

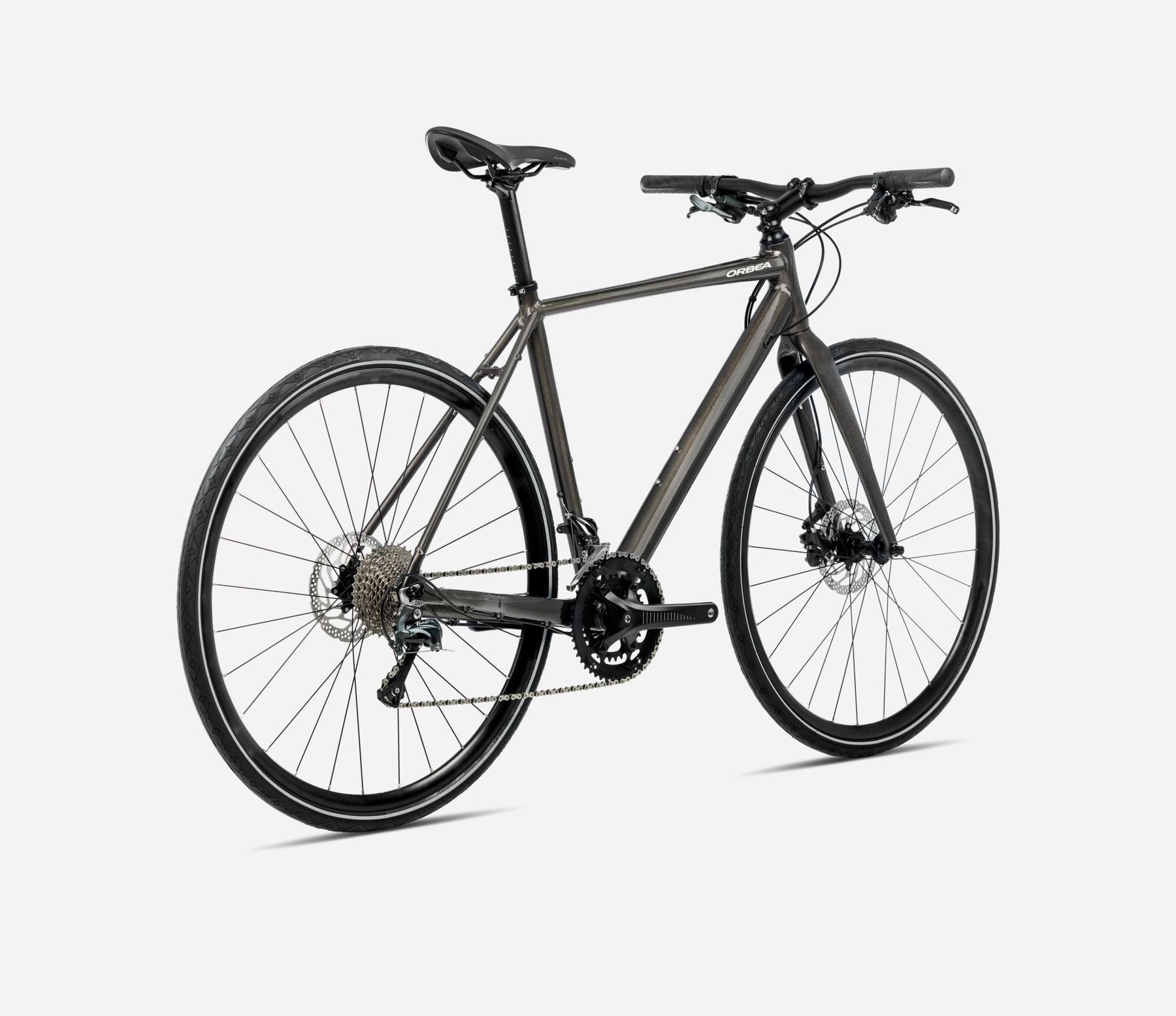

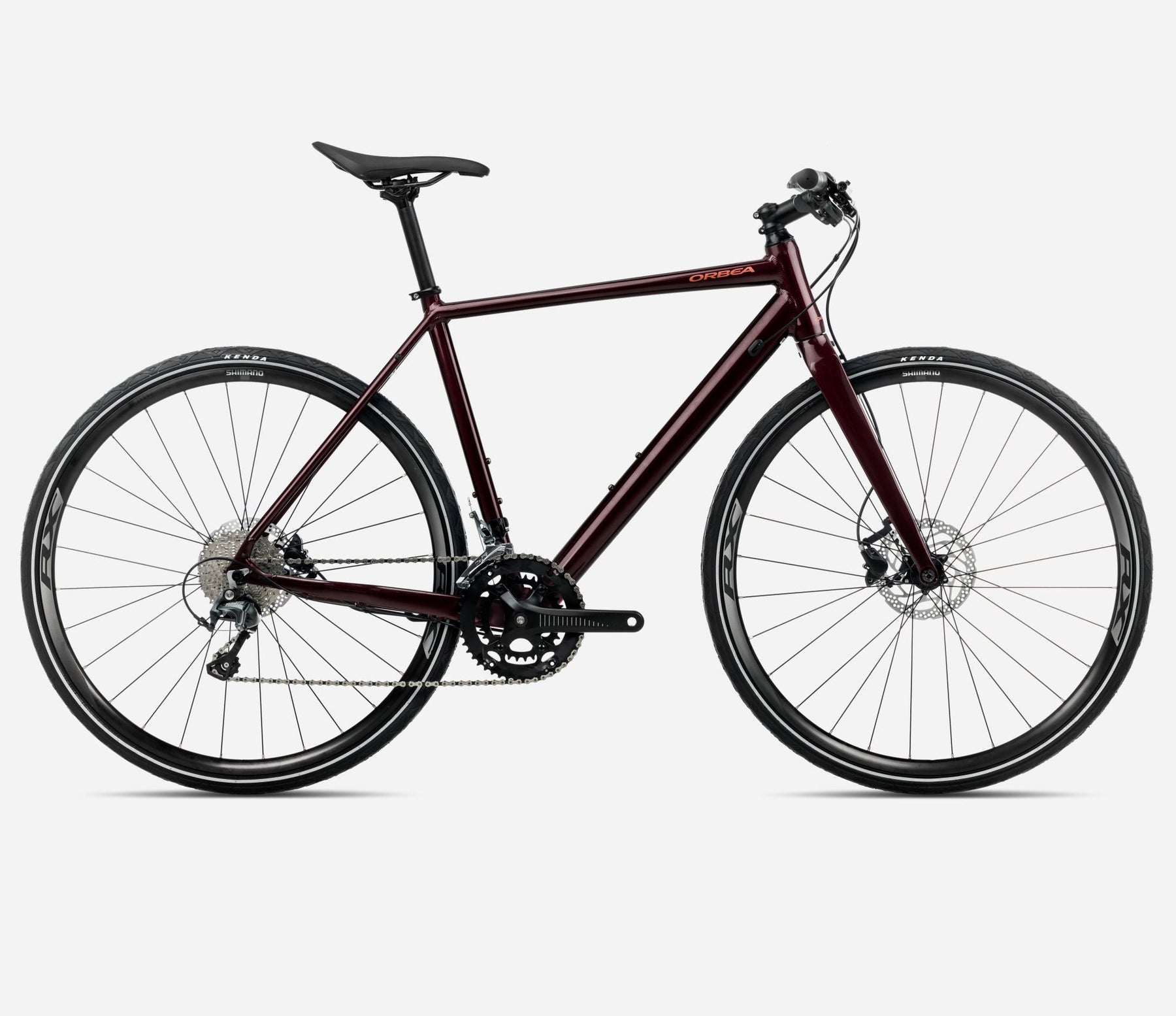

Orbea Vector 10

The Orbea Vector 10 is an urban hybrid bicycle for commuting and everyday riding. View the specification table below, and confirm the frame size and exact build with our team before ordering.

SPECIFICATIONS

FRAME
Orbea Urban Speed, Aluminium 6000, Orbea Tube Shaping, Flat Mount Disc Brake, 135x9 QR, Carrier and Mudguard compatible, max 700x40C, Inner Cable routing,

FORK
Speed 400mm Alloy Flat mount

STEERER TUBE
VP-Z104PD 1-1/8" Semi-Cartridge

CRANKSET
Orbea, Alloy, 32x48t

SHIFTERS
Shimano Tiagra 4700

CASSETTE
Shimano Tiagra HG-500 11-34t 10-Speed

REAR DERAILLEUR
Shimano Tiagra 4700 GS

FRONT DERAILLEUR
Shimano Tiagra 4700

CHAIN
KMC X10

HANDLEBAR
Alloy, 31.8mm, Riser, 640mm

BRAKES
Shimano MT200 Hydraulic Disc

WHEELS
Shimano WH-RX010 CL

TYRES
Kenda K1098 700x32 Reflective Tape

SEATPOST
Alloy, 27.2mm, Setback 0

SADDLE
Fizik Aliante R5

IMPORTANT:

Before using this vehicle, check the appropriate local laws relating to your intended use of the vehicle on roads and road related areas.
